- CONTAINER AIRBAG
- |
- ADB ATILIM DUNNAGE BAG
With their flexibility, strength, and ability to withstand tons of pressure, they protect your cargo undamaged until it reaches its destination. All the airbags we produce use a special formula film patented by our company.
Our kraft container airbags, produced from a special fabric obtained by laminating kraft paper and polypropylene fabric, are absolutely unaffected even in the most challenging conditions. They ensure your cargo reaches its destination safely, undamaged, and in perfect condition.
Robust, reliable, and easily inflatable airbags play a major role in protecting cargo and minimizing transport damage, and are much less costly than other cargo securing methods.

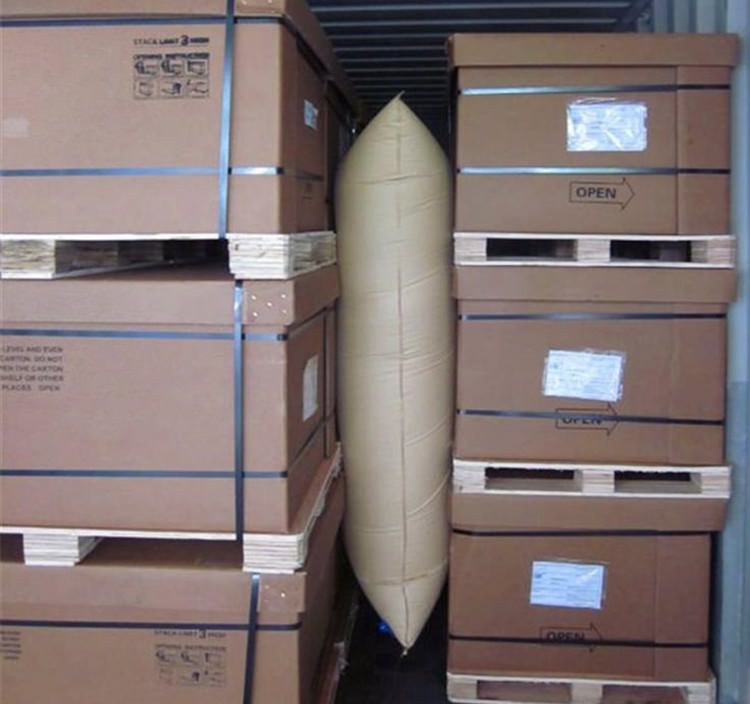

Kraft airbags offer unique advantages, especially for certain cargo types and transport conditions:
High Friction Coefficient: The texture of kraft paper is less slippery than plastic surfaces. This ensures a tighter grip between pallets or boxes, preventing the cushion from moving.
Excellent Stiffness: When inflated, it becomes quite rigid. This "wall effect" provides a great advantage in stabilizing heavy loads.
Environmentally Friendly and Sustainable: Made from 100% recyclable paper. An ideal choice for environmentally conscious markets (especially European countries).
Lightweight and Ergonomic: Much faster to apply than other fastening methods (wooden supports, etc.) and reduces labor costs.
During transportation, the sliding, tipping, or collision of goods inside containers causes significant material damage. Kraft Dunnage Bags, with their multi-layered paper structure and high friction coefficient, are designed to keep your goods in their original condition until they reach their destination.
Designed for Truck and Lorry Transportation.
Provides protection against damage that may occur to your cargo during bumpy road transportation.
| KRAFT AND POLYPROPYLENE TOGETHER | Kraft/1 PLY |
| AREA OF USE | Light Load |
| METHOD OF USE AND MAX. LOAD | For spaces parallel to the direction of movement/Vertical and Horizontal Use |
| OPERATING PRESSURE | 2 PSI |
| BURST PRESSURE | 5 PSI |
| TRANSPORTATION METHOD | TRUCK |
Designed for Truck and Lorry Transportation.
Provides protection against damage that may occur to your cargo during bumpy road transportation.
| KRAFT AND POLYPROPYLENE TOGETHER | Kraft/2 PLY |
| AREA OF USE | Light Load |
| METHOD OF USE AND MAX. LOAD | For spaces parallel to the direction of movement/Vertical and Horizontal Use |
| OPERATING PRESSURE | 2.5 PSI |
| BURST PRESSURE | 7 PSI |
| TRANSPORTATION METHOD | TRUCK/CONTAINER |
Designed for train transportation.
On the railway, it balances the pressure on the load caused by vibrations and braking, and provides protection against possible damage.
| KRAFT AND POLYPROPYLENE TOGETHER | Kraft/4 PLY |
| AREA OF USE | Light Load |
| METHOD OF USE AND MAX. LOAD | Up to 33,750 kg load for spaces parallel to the direction of movement |
| OPERATING PRESSURE | 5 PSI |
| BURST PRESSURE | 16 PSI |
| MOVEMENT TYPE | Train / Container |
Designed for train transportation.
On the railway, it balances the pressure on the load caused by vibrations and braking, and provides protection against possible damage.
| KRAFT AND POLYPROPYLENE TOGETHER | Kraft/6 PLY |
| AREA OF USE | Medium Load |
| METHOD OF USE AND MAX. LOAD | Up to 72,000 kg load for spaces parallel to the direction of movement |
| OPERATING PRESSURE | 7 PSI |
| BURST PRESSURE | 25 PSI |
| MOVEMENT TYPE | Train / Container |
Suitable for heavy rail and sea freight transportation.
Provides protection against damage that may occur to your cargo shipped in open ship hold loadings, heavy and wide rail transport (construction materials, concrete, timber, iron and heavy paper rolls).
| KRAFT AND POLYPROPYLENE TOGETHER | Kraft/8 PLY |
| AREA OF USE | Heavy Load |
| METHOD OF USE AND MAX. LOAD | Up to 85,000 kg - 97,000 kg load for spaces parallel to the direction of movement |
| OPERATING PRESSURE | 10 PSI |
| BURST PRESSURE | 20 PSI |
| MOVEMENT METHOD | Train / Ship / Container |
Suitable for heavy rail and sea freight transportation.
Provides protection against damage that may occur to your cargo shipped in open ship hold loadings, heavy and wide rail transport (construction materials, concrete, timber, iron and heavy paper rolls).
| KRAFT AND POLYPROPYLENE TOGETHER | Polypropylene Only |
| AREA OF USE | Heavy Duty |
| METHOD OF USE AND MAX. LOAD | Up to 85,000 kg - 97,000 kg load for spaces parallel to the direction of movement |
| OPERATING PRESSURE | 10 PSI |
| BURSTING PRESSURE | 30 PSI |
| MOVEMENT METHOD | Train / Ship / Container |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 60 | x | 60 | 20 cm |
| 60 | x | 70 | 20 cm |
| 60 | x | 80 | 20 cm |
| 60 | x | 90 | 20 cm |
| 60 | x | 100 | 20 cm |
| 60 | x | 110 | 20 cm |
| 60 | x | 120 | 20 cm |
| 60 | x | 130 | 20 cm |
| 60 | x | 140 | 20 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 60 | x | 150 | 20 cm |
| 60 | x | 160 | 20 cm |
| 60 | x | 170 | 20 cm |
| 60 | x | 180 | 20 cm |
| 60 | x | 190 | 20 cm |
| 60 | x | 200 | 20 cm |
| 60 | x | 210 | 20 cm |
| 60 | x | 220 | 20 cm |
| 60 | x | 230 | 20 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 60 | x | 240 | 20 cm |
| 60 | x | 250 | 20 cm |
| 60 | x | 260 | 20 cm |
| 60 | x | 270 | 20 cm |
| 60 | x | 280 | 20 cm |
| 60 | x | 290 | 20 cm |
| 60 | x | 300 | 20 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 90 | x | 60 | 30 cm |
| 90 | x | 70 | 30 cm |
| 60 | x | 80 | 30 cm |
| 90 | x | 90 | 30 cm |
| 90 | x | 100 | 30 cm |
| 90 | x | 110 | 30 cm |
| 90 | x | 120 | 30 cm |
| 90 | x | 130 | 30 cm |
| 90 | x | 140 | 30 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 90 | x | 150 | 30 cm |
| 90 | x | 160 | 30 cm |
| 90 | x | 170 | 30 cm |
| 90 | x | 180 | 30 cm |
| 90 | x | 190 | 30 cm |
| 90 | x | 200 | 30 cm |
| 90 | x | 210 | 30 cm |
| 90 | x | 220 | 30 cm |
| 90 | x | 230 | 30 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 90 | x | 240 | 30 cm |
| 90 | x | 250 | 30 cm |
| 90 | x | 260 | 30 cm |
| 90 | x | 270 | 30 cm |
| 90 | x | 280 | 30 cm |
| 90 | x | 290 | 30 cm |
| 90 | x | 300 | 30 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 100 | x | 60 | 35 cm |
| 100 | x | 70 | 35 cm |
| 60 | x | 80 | 35 cm |
| 100 | x | 90 | 35 cm |
| 100 | x | 100 | 35 cm |
| 100 | x | 110 | 35 cm |
| 100 | x | 120 | 35 cm |
| 100 | x | 130 | 35 cm |
| 100 | x | 140 | 35 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 100 | x | 150 | 35 cm |
| 100 | x | 160 | 35 cm |
| 100 | x | 170 | 35 cm |
| 100 | x | 180 | 35 cm |
| 100 | x | 190 | 35 cm |
| 100 | x | 200 | 35 cm |
| 100 | x | 210 | 35 cm |
| 100 | x | 220 | 35 cm |
| 100 | x | 230 | 35 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 100 | x | 240 | 35 cm |
| 100 | x | 250 | 35 cm |
| 100 | x | 260 | 35 cm |
| 100 | x | 270 | 35 cm |
| 100 | x | 280 | 35 cm |
| 100 | x | 290 | 35 cm |
| 100 | x | 300 | 35 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 120 | x | 60 | 40 cm |
| 120 | x | 70 | 40 cm |
| 60 | x | 80 | 40 cm |
| 120 | x | 90 | 40 cm |
| 120 | x | 100 | 40 cm |
| 120 | x | 110 | 40 cm |
| 120 | x | 120 | 40 cm |
| 120 | x | 130 | 40 cm |
| 120 | x | 140 | 40 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 120 | x | 150 | 40 cm |
| 120 | x | 160 | 40 cm |
| 120 | x | 170 | 40 cm |
| 120 | x | 180 | 40 cm |
| 120 | x | 190 | 40 cm |
| 120 | x | 200 | 40 cm |
| 120 | x | 210 | 40 cm |
| 120 | x | 220 | 40 cm |
| 120 | x | 230 | 40 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 120 | x | 240 | 40 cm |
| 120 | x | 250 | 40 cm |
| 120 | x | 260 | 40 cm |
| 120 | x | 270 | 40 cm |
| 120 | x | 280 | 40 cm |
| 120 | x | 290 | 40 cm |
| 120 | x | 300 | 40 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 150 | x | 60 | 45 cm |
| 150 | x | 70 | 45 cm |
| 60 | x | 80 | 45 cm |
| 150 | x | 90 | 45 cm |
| 150 | x | 100 | 45 cm |
| 150 | x | 110 | 45 cm |
| 150 | x | 120 | 45 cm |
| 150 | x | 130 | 45 cm |
| 150 | x | 140 | 45 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 150 | x | 150 | 45 cm |
| 150 | x | 160 | 45 cm |
| 150 | x | 170 | 45 cm |
| 150 | x | 180 | 45 cm |
| 150 | x | 190 | 45 cm |
| 150 | x | 200 | 45 cm |
| 150 | x | 210 | 45 cm |
| 150 | x | 220 | 45 cm |
| 150 | x | 230 | 45 cm |
| WIDTH | HEIGHT | SPACE | |
|---|---|---|---|
| 150 | x | 240 | 45 cm |
| 150 | x | 250 | 45 cm |
| 150 | x | 260 | 45 cm |
| 150 | x | 270 | 45 cm |
| 150 | x | 280 | 45 cm |
| 150 | x | 290 | 45 cm |
| 150 | x | 300 | 45 cm |
